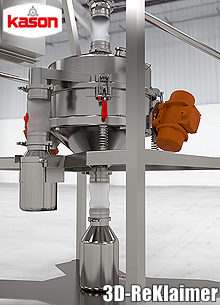

3D ReKlaimer Additive Manufacturing (AM) Recovery System

The latest addition to Kason's VIBROSCREEN family of products, the 3D ReKlaimer Additive Recovery System has been designed to optimize Additive Manufacturing (AM) powder reclamation processes. The state-of-the-art design efficiently screens and reclaims the many different powders used for 3D printings most widely used technologies, including:

• Selective Laser Sintering (SLS)
• Binder Jetting
• Direct Metal Laser Sintering (DMLS)
• Selective Laser Melting (SLM)
• Laser Powder Bed Fusion (LPBF)
• Laser Metal Fusion (LMF)
• Electron Beam Melting (EBM)

The fully customizable system is designed to application specific standards ensuring that all additive manufacturing processing requirements are met.

Key Benefits:

• Lower Operating Costs
• Save Time & Reclaim Powder in Minutes
• Lower Material Costs: Recover, Reclaim & Recycle Used Powders
• Prevent Cross-Contamination & Assure High-Quality Powders
• Minimize Labor Costs with an Automated System
• Protect Workers with Total Dust Containment
• Easy-Clean & Compact Design

Features and Capabilities:

• Custom Designs & Standard Models Available to Suit Application
• Vacuum Convey Used/Excess Powders from 3D Printers, Containers, Drums, IBCs, Hoppers
• Stationary and Mobile System Designs
• Factory Modularized & Integrated
• Compressed Air Vacuum Conveyor - Standard
• Kasonic Ultrasonic Anti-Blinding Technology - Standard
• Static Grounded System Components
• Screened Powders Discharge to Sealed Container
• Compact Design for Low Headroom and Floor Space
• Recovery system for metal powders used in 3D printing including:
  • stainless
  • titanium
  • silver
  • aluminum
  • and most other other very fine and dense metal powders

Available Options:

• Secondary HEPA Filter
• Inert Gas Purge Closed Loop System Design
• Closed Loop System Electric Vacuum Pump
• Flo-thru design with side-mount drive
• Standard Vibroscreen with vertical-mount drive

Plastic powders to prescreen? We can screen that!

We also provide high-efficiency, fine-mesh screening solutions suitable for polycarbonate, ABS plastic, polyester, nylon, glass filled polyamide, epoxy resin powders and other fine plastics used in 3D printing and manufacturing. See our complete line of VIBROSCREEN Circular Vibratory Screeners and Separators.
